XC7Z035
Model
AX7Z035/ AX7Z035BEan
6971390270226Price
$ 1100
Xilinx Zynq UltraScale+ MPSoC AI 100G Optical fiber HPC FPGA Core Board XCZU19EG
Xilinx Zynq UltraScale+ MPSoC XCZU2CG FPGA Development Board
Xilinx Zynq UltraScale+ MPSoC XCZU9EG FPGA Development Board
Xilinx Artix-7 FPGA Development Board PCIE XC7A200T
XILINX Zynq-7000 SoC XC7Z015 ARM FPGA Development Board
Notice for purchase:
This series of development boards include AX7Z035 and AX7Z035B.
Only the Ethernet interface chips of the expansion board are different, and the functions are the same.
The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.
Apply to PCIe, Video Image Proessing SFP / Ethernet Communicaion
AX7Z035 Supporting Verilog HDL Demos and Docuemnts Linux Kernel: petalinux 4.9.0-xilinx-v2017.4 All Doucments Saved in Dropbox, after buy the board, email to get it.
Course_S1_Basic Tutorial
Part 01: Software Package Introduction and FPGA Board Inspection
Part 02: Introduction to ZYNQ
Part 03: Vivado development environment
Part 04: PL's "Hello World" LED experiment
Part 05: HDMI output experiment
Part 06: HDMI Pass-through ILA Debugging Experiment
Part 07: PL-side DDR3 read and write test
Part 08: GTX transceiver bit error rate test IBERT experiment
Part 09: Experience ARM, bare metal output "Hello World"
Part 10: PS lights up the LED lights of the PL
Part 11: PS timer interrupt experiment
Part 12: PL button interrupt experiment
Part 13：Ethernet Experiment (LWIP)
Part 14: Custom IP experiment
Part 15: Use VDMA to drive HDMI display
Part 16 Curing Programs
Part 17: PCIE Testing
Part 18: PCIe transmits video to HDMI display
Part 19: HDMI video input to PCIe capture display
Part 20: Developing PCIe under Linux
Part 21: Install virtual machine and Ubuntu system
Part 22: Ubuntu installs the Vivado software for Linux
Part 23: Petalinux tool installation
Part 24: NFS service software installation
Part 25: Customizing Linux with Petalinux
Part 26: Develop Linux programs using the SDK
Part 27: GPIO experiment under Linux
Part 28: HDMI display under Petalinux
Part 29: Use the Debian 8 desktop system
Part 30: Making QSPI Flash booted Linux
Part 31: QSPI and EMMC boot Linux
Course_S2_SDK Application Tutorial
Part 01: PS side UART read and write control
Part 02: Use of XADC
Part 03: PL read and write PS DDR data
Part 04: Realize PS and PL data interaction through BRAM
Part 05: Use of dual core AMP
Part 06: Use of “Free RTOS”under ZYNQ
Part 07: DMA loop test
Part 08: Use of DMA--DAC waveform generator (AN108)
Part 09: Use of DMA--ADC oscilloscope (AN108)
Part 10: Use of DMA--ADC oscilloscope (AN926)
Part 11: Use of DMA--ADC oscilloscope (AN706)
Part 12: Use of the SG DMA based on ADC module (AN926)
Part 13: Use the SG DMA based on DAC module (AN9767)
Part 14: OV5640 camera acquisition display (1)
Part 15: OV5640 camera acquisition display (2)
Part 16: Binocular camera Ethernet transmission
Part 17: Use of 7 inch LCD module
Part 18: Use of 7-inch touch screen disaply
Part 19: SD card read and write operation BMP picture display
Part 20: SD card read and write operation camera capture
Part 21: Ethernet TransmissionADC Acquisition Based on AN926 Module
Part 22: Ethernet Transmission ADC Acquisition Based on AN706 Module
Part 23: Ethernet Transmission--ADC Acquisition Based on AN108 Module
Part 24: Remote update QSPI Flash based on UDP/TCP
Course_S3_HSL Application Tutorial
Part 01: Getting to Know HLS
Part 02: Status Indicator LED
Part 03: Floating Point Coprocessing
Part 04: Video Color Bar
Part 05: Realize PS and PL data interaction
Part 06: Video Frame Buffer Read and Write Management
Part 07: Image Scaling Overlay
Part 08: Character Overlay
Part 09: Image Contrast Adjustment
Part 10: Auto Focus
Part 11: Edge Detection
Part 12: Corner Detection
Part 13: Fast Fourier Transform
Course_S4_Linux Application Tutorial
Part 01: QT application on ZYNQ
Part 02: OpenCV Application (USB Camera Display）
Part 03: Binocular Camera Module OpenCV Display
Part 04: Touch screen module application
Part 05: AXI DMA Read and Write Test
Part 06: DMA-based ADC Waveform Display (AN926)
Part 07: DMA-based ADC Waveform Display (AN706)
Part 08: Autorun petalinux application
Part 09: Appendix - Linux Common Commands
FPGA Board
AN9767 Collection Package
AN706 Collection Package
AN9238 Collection Package
Video Package
Luxury Package
FPGA Board
●
●
●
●
●
●
Downloader Cable USB
●
●
●
●
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
Binocular Camera
●
●
7-inch LCD
●
●
套餐配套模塊，點擊了解更多

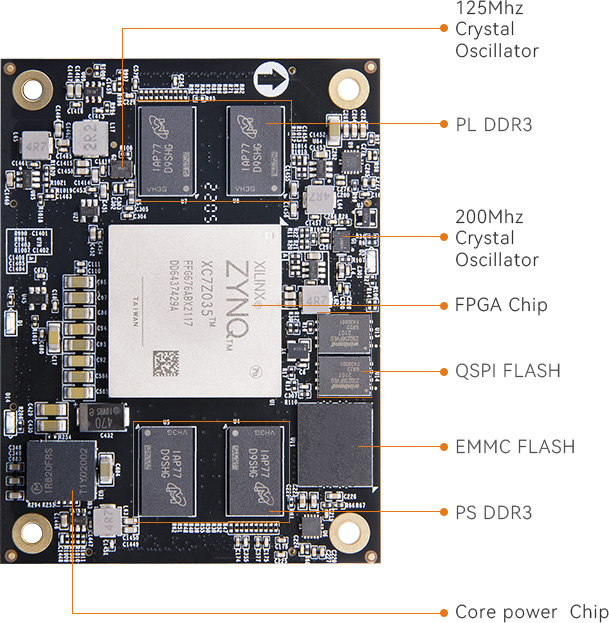

*Learn More about the Core Board, Click to View >

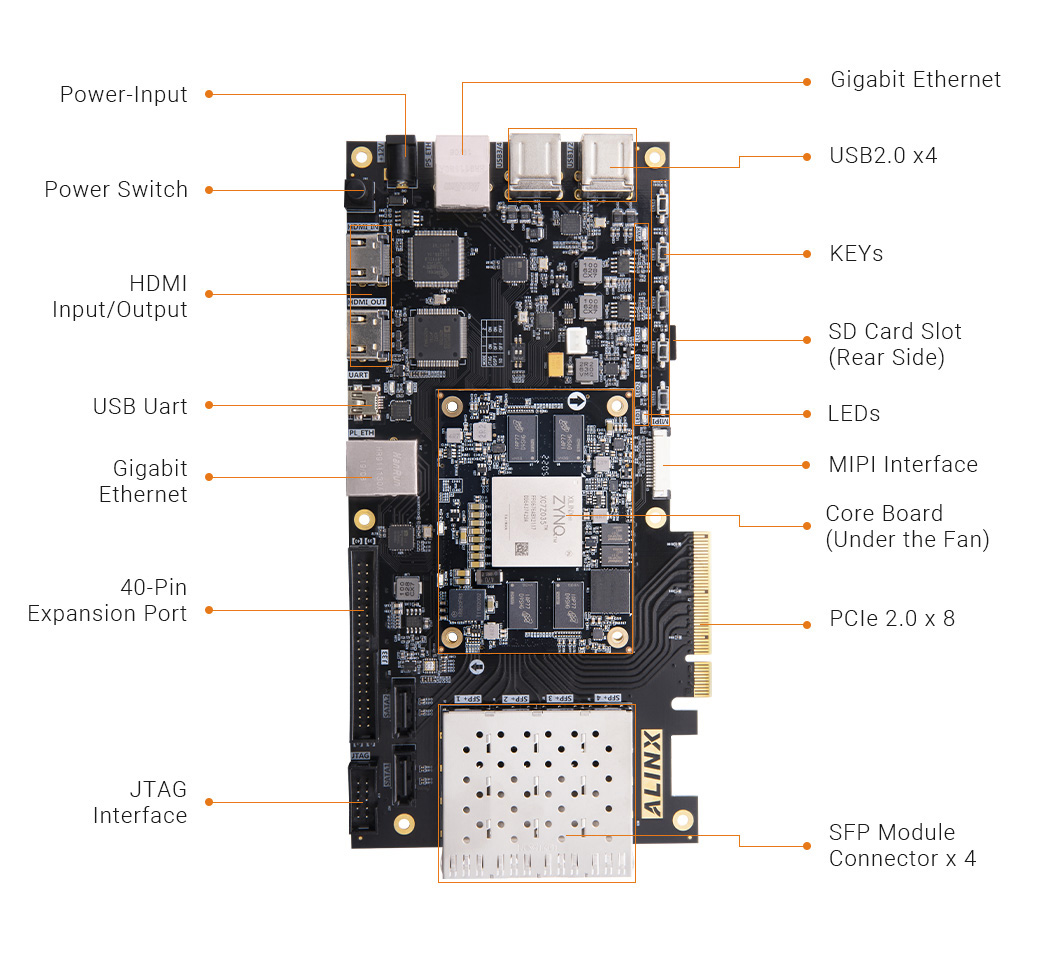

FPGA Board
AX7Z035 / AX7Z035B
FPGA Chip
XC7Z035-2FFG676I
Kernel
Dual-Core ARM Cortex-A9 Main Frequency 800MHz
PL -end RAM
1GB DDR3 Data Rate 1600Mbps
PS -end RAM
1GB DDR3 Data Rate 1066Mbps
Speed Grades
-2
Chip Level
Industrial Grade
Working Temperature
-40°C~85°C
Logic Cells
275k
Look Up Tables (LUTs)
171900
CLB Flip-Flops
343800
Multiplier
900
Transceivers
8-Channels Support PCIE Gen2 x 8
Block RAM
17.6Mbit
MIO
37
PL IO
144
Voltage Adjustable IO
96
LVDS
48 Pairs
DDR3
32bit Bus, Data Rate 1066Mbps
QSPI Flash
512Mbit QSPI FLASH, Used as FPGA User Data Storage
EMMC Flash
8GB, Used as a Large-Capacity Storage Device in the ZYNQ System
Transceivers
8GTX，Each up to 6.25Gb/s, Used for SFP and PCIe Data Communication
SFP Interface
4-way High-Speed SFP Interface, the Receiving and Transmitting Speed of each Channel is up to 10.3125Gb/s
PCIe 2.0
AX7Z035 PCIe 2.0 x4, AX7Z100 PCIe 2.0 x8 Data Transmission Interface Single Channel Communication Rate up to 5GBaud
Ethernet Interface
Two 10/100M/1000M Ethernet RJ-45 Interfaces for Data Exchange
JTAG
Standard JTAG Port for Debug and Download of FPGA Program
HDMI
HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats
USB 2.0 x 4
Used for Connect USB Peripherals such as Mouse, Keyboard.
USB Uart
Used for Serial Communication with PC or External Devices
Crystal Oscillator
33.333Mhz Provide Stable Clock Source for the PS System
200Mhz Provide DDR Reference Clock for the PL Logic
125Mhz Provide Reference Clock for the GTX Transceiver
Micro SD Card Slot
SD TF Card to Store Operating System Image and File System
LED
9 LEDs lights, 2 LEDs in the Core Board, 7 LEDs in the Carrier Board.
KEYs
5 Keys and 1 Reset Key, 4 PL User Keys
40-Pin Expansion Ports
Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).
Voltage Input
+12 V DC
Current Input
Max. Current 2A
FPGA Board
1
USB Downloader Cable
1
Mini USB Cable
1
DC Fan (Fixed on the Board)
1
12V Power Adapter
1
Card Reader
1
TF Card
1
PCIe Fence
1
Size Dimension
Core Board 3.15 inch x 2.36 inch, Carrier Board 9.25 inch x 4.33 inch
Number of Layers
12-Layer Core Board PCB, 4-Layer Carrier Board PCB
Industrial Ethernet, Video Transmission Gigabit Ethernet and SFP Communication High-Speed Data Transmission Exchange
Optical Fiber Test Eye Diagram Each Optical Fiber Data Communication is up to 10Gb/s
Meet PCIe Data Transmission and Video Image Processing
PCIe 2.0 x4 Read and write test
HDMI Video Input to PCIe Capture Display
PASS High and Low Temperature Test
Security, Video Image Collection and Transmission Data Processing, Face Detection
Develop and Manage the System Interface
AN9767/AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module,
and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,
Run the System to Draw the Waveform Data, and is Displayed to the
Monitor through the HDMI Interface of the FPGA Development Board
The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
